LESS TIME FINDING. MORE TIME FISHING.

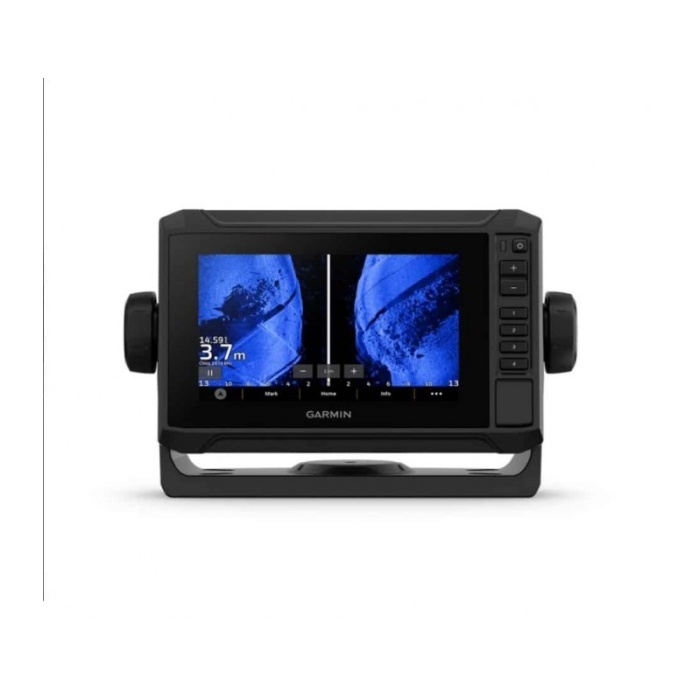

The sunlight-readable 9” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

See below and around your boat in incredible detail with the transducer bundle.
Navigate any waters with optional charts and maps (sold separately).
Share data and maps with select ECHOMAP devices on your network.
Manage your marine experience from nearly anywhere1.
Control the most powerful trolling motor available2.
Create your own maps on the fly and tailor them to fit your needs.

SONAR SUPPORT
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

OPTIONAL TRANSDUCER BUNDLE
Select the transducer bundle to add a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

OPTIONAL CHARTS AND MAPS
Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.

QUICKDRAW CONTOURS
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app.

NETWORK CAPABLE
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7” and 9” models can share information — such as sonar, user data and charts — with them.

NMEA 2000® AND NMEA 0183 NETWORKS
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more1.

FORCE® TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.

TECHNICAL SPECIFICATIONS:

Physical dimensions: 28.2 x 16.4 x 6.0 cm
Display dimensions: 79" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution: 400 x 800 pixels, wvga
Weight: 1 kg
Water rating: Ipx7
Energy consumption: 18w
Antenna: internal or external using nmea 2000
Installation options: bail or flush
Receiver: 5 hz
Garmin marine network ™ port
1 panoptix ™ port
Transmission power: 500 w (rms) / 4,000 w (peak to peak)
Maps and memory
Preloaded maps
Worldwide basemap
Accepts data cards: 1 microsd ™ card; 32 gb maximum card size
Waypoints: 5,000
Log: 50,000 points; 50 saved tracks
Routes: 100

Outdoor activities:
Tide tables
Cartplotter functions
Compatibility with garmin sonar
Support axis (follows the position of the target vessels)
Supports dsc (shows position data from dsc compliant vhf radio)
Gcv ™ black box sonar support
Compatible with activecaptain: Yes

Sailing functions:
Sonar functions and specifications
Can be used with two frequency (50/200 khz) sonar
Can be used with two beams (77/200 khz) sonar
Chirp sonar technology yes (built-in)
Clearvü: Yes with chirp (built-in)
Sidevü: Yes with chirp (built-in)
Maximum depth:
2,300 ft @ 77 khz, freshwater
1,100 ft @ 77 khz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
Bearing lock (shows return from bearing up)
Water temperature log and chart
Sonar recording
Unwinding the history of sonar
Connections
Compatible with nmea 2000®
Number of sensor pins 12
Nmea 0183 entrance port: 1
Nmea 0183 output ports: 1
Video input ports: none
Video output ports: none
Wireless connectivity: Yes
