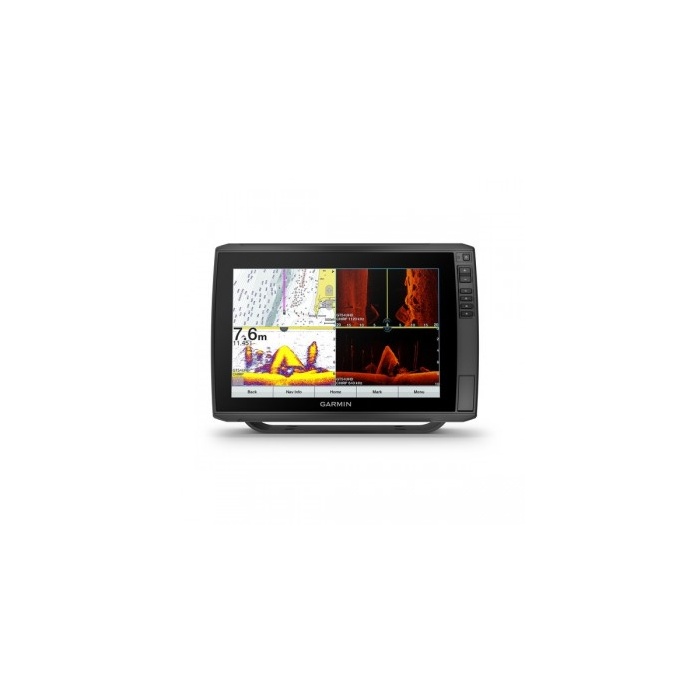

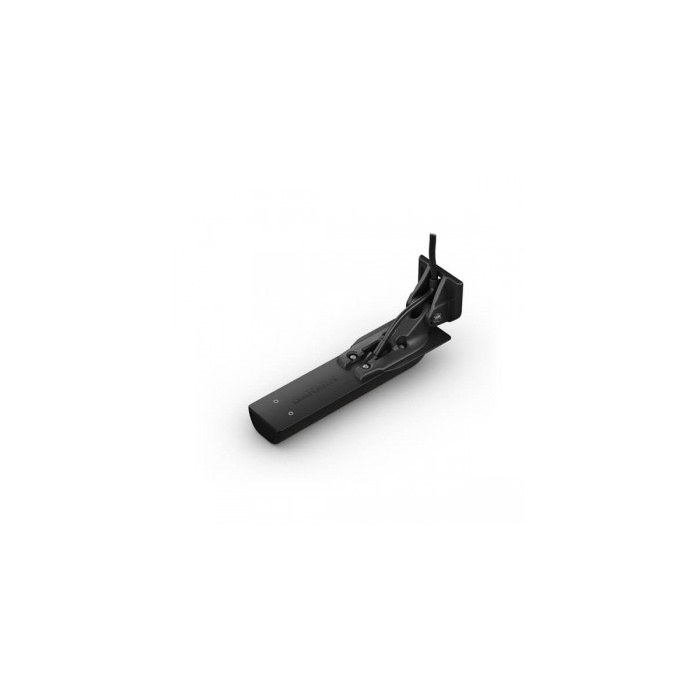

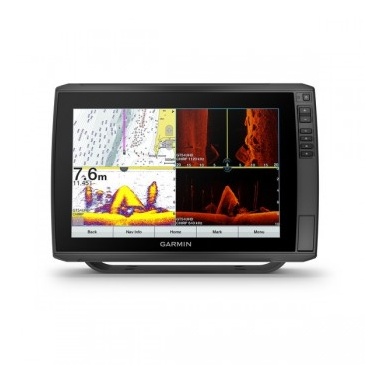

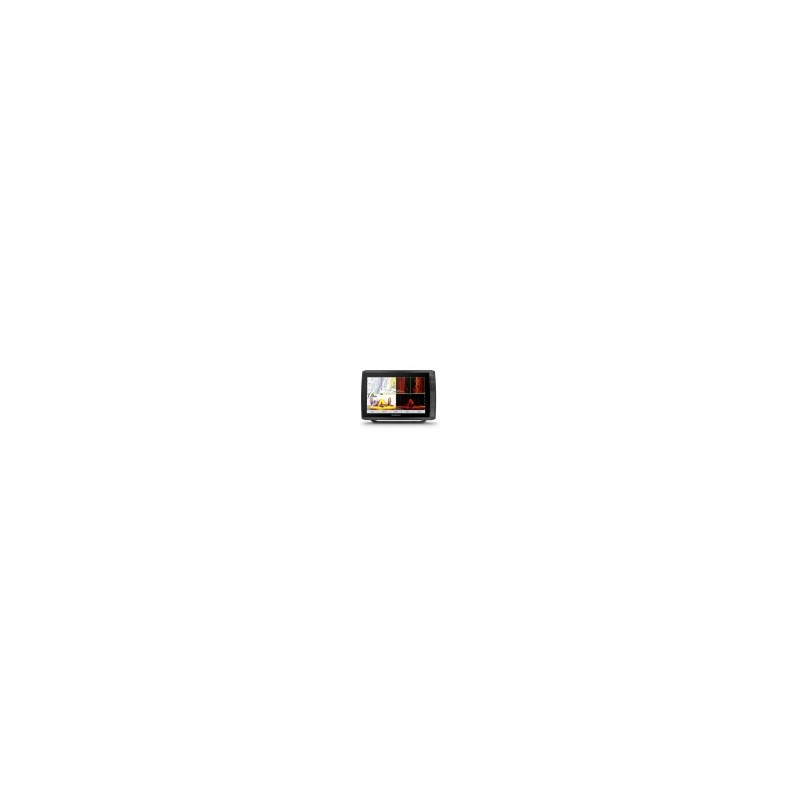

Premium sonar chart plotter The 120” touchscreen combo device is equipped with an all-in-one sensor: CHIRP traditional, Utra High-Definition ClearVü and SideVü scanning sonar Supports the entire Garmin Panoptix™ line of sonar and the Panoptix LiveScope™ scanning sonar system as well. Panoptix LiveScope LVS12 sonar Share sonar, track and POI data with other ECHOMAP Ultra 10" and 12" devices and ECHOMAP Plus 7" and 9" devices Garmin Quickdraw™ Contours - allows you to create personal maps where depth lines are marked with an accuracy of 30cm Wi-Fi® support connects to the free ActiveCaptain™ app for access to OneChart™, smart notifications, Garmin Quickdraw™ Community and more. to the data NMEA 2000® network support allows connecting additional sensors, autopilot, digital switches, weather forecast, FUSION-Link™ audio system, etc.
QUICKDRAW Contours
Maps
General |
|
| Physical dimensions | 295 x 195 x 98 mm |
| Display size | 21.7 cm x 13.6 cm; 10" diagonal |
| Display resolution | WXGA; 1280 x 800 pixels |
| Display type | Touchscreen IPS display (anti-glare finish) |
| Weight | 1.8 kg |
| Water rating | IPX7 |
| Polarized Support | Yes |
| Power consumption | 26 W |
| Antenna | Internal only |
| Mounting options | Bail or flush |
| Receiver | 10 Hz |
| Garmin Marine Network ports | 2 (large connector) |
Maps & memory |
|
| Accepts data cards | 2 microSD cards |
| Waypoints | 5 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
Outdoor recreation features |
|
| Tide tables | Yes |
Chartplotter features |
|
| Garmin Sonar compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Supports FUSION-Link compatible radios | Yes |
| GCV Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Sailing features | Yes |
Sonar features & specifications |
|
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Frequencies supported | CHIRP High-Wide: 150-240 kHz |
| Ultra High-definition ClearVü: 800 kHz (760-880 kHz) | |
| CHIRP ClearVü: 455 kHz (425-845 kHz) | |
| Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz) | |
| Transmit power | 600 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes |
| SideVü | Yes |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater |
| 1,100 ft @ 77 kHz, saltwater | |
| (depth capacity is dependent on water bottom type and other water conditions) | |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
Connections |
|
| NMEA 2000® compatible | Yes |
| Transducer pin numbers | 12 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Wireless connectivity | Yes |
