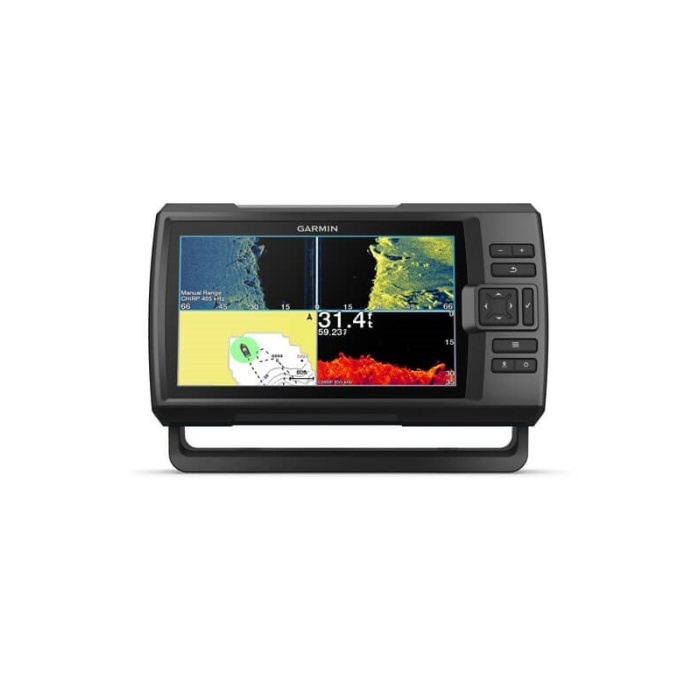

Striker Vivid Series Screen 5-9´´ fisfinder with or w/o Transducer @ marine24

Parameters

* Model

Compare

THE CHOICE IS YOURS

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7cv fishfinder with transducer.

The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.

Never lose a hot spot again. Use waypoint marking to find your way back.

What’s under the water’s surface looks pretty good as 1' contours, just saying.

Wi-Fi^® connection¹ on land opens up a world of possibilities on the water.

CLEAR, COLORFUL SONAR

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9” fishfinder.

BUILT-IN SONAR

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours².

WI-FI CONNECTIVITY

Connect to the ActiveCaptain^® app¹ to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw^™ Community.

INCLUDED HARDWARE

The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

	Vivid 5cv	Vivid 5cv	Vivid 7cv	Vivid 7sv	Vivid 7sv	Vivid 9sv	Vivid 9sv
MODEL NO	010-02551-01	010-02551-02	010-02552-01	010-02553-01	010-02553-02	010-02554-02	010-02554-01
TRANSDUCER	GT20	NO	GT20	GT52	NO	NO	GT52
	clear Vü,traditional chirp	clear Vü,traditional chirp	clear Vü,traditional chirp	clear Vü,sidevü,traditional chirp	clear Vü,sidevü,traditional chirp	clear Vü,sidevü,traditional chirp	clear Vü,sidevü,traditional chirp
DIMENSION	7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)	7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)	9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)	9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)	9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)	11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)	11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
WEIGHT	1.0 lb (450 g)	1.0 lb (450 g)	1.7 lbs (770 g)	1.7 lbs (770 g)	1.7 lbs (770 g)	2.4 lbs (1.1 kg)	2.4 lbs (1.1 kg)
WATERPROOF	IPX7	IPX7	IPX7	IPX7	IPX7	IPX7	IPX7
DISPLAY TYPE	WVGA color	WVGA color	WVGA color	WVGA color	WVGA color	WVGA color	WVGA color
DISPLAY SIZE	2.6" x 4.3" (6.5 x 10.8 cm); 5.0" diag (12.8 cm)	2.6" x 4.3" (6.5 x 10.8 cm); 5.0" diag (12.8 cm)	3.4" x 6.1" (8.6 x 15.4 cm); 7.0" diag (17.8 cm)	3.4" x 6.1" (8.6 x 15.4 cm); 7.0" diag (17.8 cm)	3.4" x 6.1" (8.6 x 15.4 cm); 7.0" diag (17.8 cm)	4.4" x 7.8" (11.2 x 19.8 cm); 9.0" diag (22.8 cm)	4.4" x 7.8" (11.2 x 19.8 cm); 9.0" diag (22.8 cm)
DISPLAY RESOLUTION	800 x 480 pixels	800 x 480 pixels	800 x 480 pixels	800 x 480 pixels	800 x 480 pixels	800 x 480 pixels	800 x 480 pixels
MOUNTING OPTIONS	flush, tilt/swivel	flush, tilt/swivel	flush, tilt/swivel	flush, tilt/swivel	flush, tilt/swivel	flush, tilt/swivel	flush, tilt/swivel
INPUT	Keyed	Keyed	Keyed	Keyed	Keyed	Keyed	Keyed
Maps and Memory
WAYPOINTS/FAVORITES/LOCATIONS	5000	5000	5000	5000	5000	5000	5000
TRACK POINTS	50 000	50 000	50 000	50 000	50 000	50 000	50 000
TRACKS	50	50	50	50	50	50	50
NAVIGATION ROUTES	100	100	100	100	100	100	100
Sensors
GPS	yes	yes	yes	yes	yes	yes	yes
HAS BUILT-IN RECEIVER	yes	yes	yes	yes	yes	yes	yes
SUPPORTS WAAS	yes	yes	yes	yes	yes	yes	yes
Optional map and support
GARMIN QUICKDRAW CONTOURS	yes	yes	yes	yes	yes	yes	yes
Electrical Features
POWER INPUT	12 to 20 Vdc	12 to 20 Vdc	12 to 20 Vdc	12 to 20 Vdc	12 to 20 Vdc	12 to 20 Vdc	12 to 20 Vdc
TYPICAL CURRENT DRAW	0.40 A	0.40 A	0.55 A	0.55 A	0.55 A	0.75 A	0.75 A
MAX CURRENT DRAW	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
POWER CONSUMPTION	4,8	4,8	6,6	6,6	6,6	9	9
Sonar features
DISPLAYS SONAR	yes	yes	yes	yes	yes	yes	yes
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	Built-in	Built-in	Built-in	Built-in	Built-in	Built-in	Built-in
CLEARVÜ	yes	yes	yes	yes	yes	yes	yes
FREQUENCY	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü260/455/800 kHz	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü260/455/800 kHz
TRANSMIT POWER	500 W (RMS)	500 W (RMS)	500 W (RMS)	500 W (RMS)	500 W (RMS)	500 W (RMS)	500 W (RMS)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)	yes	yes	yes	yes	yes	yes	yes
WATER TEMPERATURE LOG	yes	yes	yes	yes	yes	yes	yes
Connections
4-PIN TRANSDUCER PORTS	1	1	1	1	1	2	2
GARMIN WI-FI NETWORK (LOCAL CONNECTION)	yes	yes	yes	yes	yes	yes	yes
Fishfinder options
SPLIT-SCREEN ZOOM	yes	yes	yes	yes	yes	yes	yes
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)	yes	yes	yes	yes	yes	yes	yes
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS)	yes	yes	yes	yes	yes	yes	yes
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)	yes	yes	yes	yes	yes	yes	yes
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)	yes	yes	yes	yes	yes	yes	yes
WATER TEMPERATURE SENSOR INCLUDED	yes	yes	yes	yes	yes	yes	yes
DEPTH RANGE SHADING	yes	yes	yes	yes	yes	yes	yes
